Wave Spring Series Extension: Small Diameter Wave Springs

 Standards now available from as small as .188" (6mm)

Wave-spring---V2-1-1

Application Driven Solutions™

Today’s marketplace calls for smaller, lighter assemblies with greater efficiencies and lower manufacturing costs, which is why we are introducing new, standard series small diameter wave springs! Our multi-turn wave springs are now available as standards from .188” (6 mm) outside diameter.

Download Small Wave Spring Brochure

Compact & Light Wave Springs

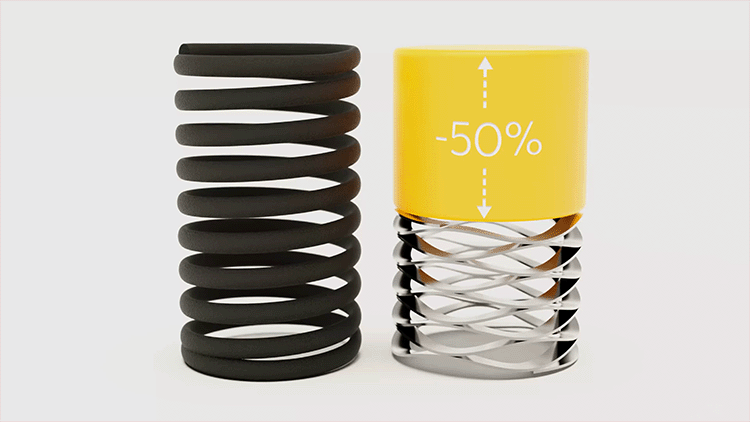

Spring Comparison Compression Final Fall 600 x 400 2022 copy

Save Valuable Space with Wave Springs

Rotor Clip manufactures the largest range of Wave Springs in the market. We have the capability to make Wave Springs from .118" - 24" (3mm - 610mm.

  • Reduce operating heights by up to 50%.
  • Single-Turn & Multi-Turn designs available.
  • Available in plain ends, shim ends and patented flat ends.
  • Various materials and finishes available, with stainless steel & exotic alloys readily available.
  • No tooling costs for custom parts.
Request Free Samples

Product Focused, Support Driven

Standard Materials

  • Carbon steel (standard) - SAE 1060-1090 (ST)
  • 17-7 PH Stainless steel (standard)

Other Materials

  • Stainless - AISI 302, AISI 316, and A286
  • Inconel X750
  • Elgiloy
  • Hastelloy C276
  • Beryllium-copper
  • Phosphor-bronze



Customization Options.

  • Spring force and work height
  • Cycle life
  • Nested coiling
  • Shimmed or flat end
  • Wire thickness and shape
  • Coiling direction
